ESHX235RGN06A is 2.35 inch TFT display module , 320x480 Resolution, 40 PINS SPI+RGB interface, brightness is 320 cd/m2 TFT lcd, Module Driver IC is ST7701S and view angle is free
A:Product Parameter
| ITEM | specification |
| Model Number | ESHX235RGN06A |
| size | 2.35 inch TFT |
| LCD Type | IPS |
| Number of pixels | 320x480 |
| Active area | 33.12x49.68mm |
| OutlineSize(W*H*T) | 37.52x60.08x2.2mm |
| Viewing direction | free view angle |
| LCM Driver IC | ST7701S |
| LCM interface | SPI+RGB interface |
| PIN number | 40pins |
| LED number | 6pcs |
| operating temperature | -20~70 |
| storage temperature | -30 to +80 |
| Luminance | 320c/d |
| touch panel | / |

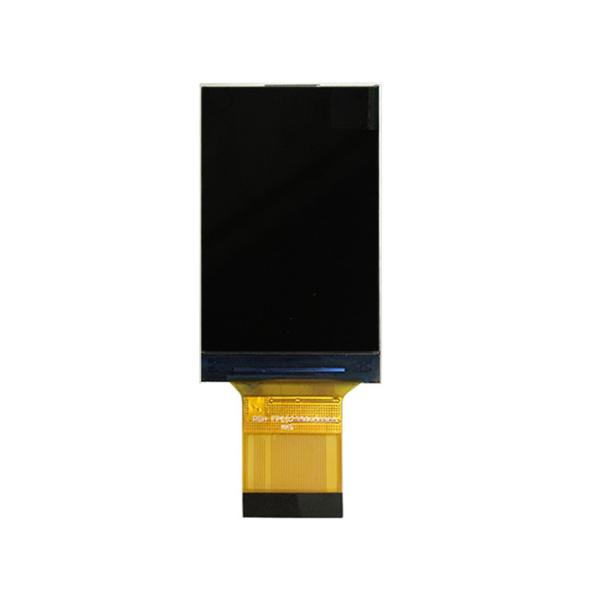

B:Product Picture
